🌟VERY RARE AND EVEN MORE SPECIAL AC30 🌟

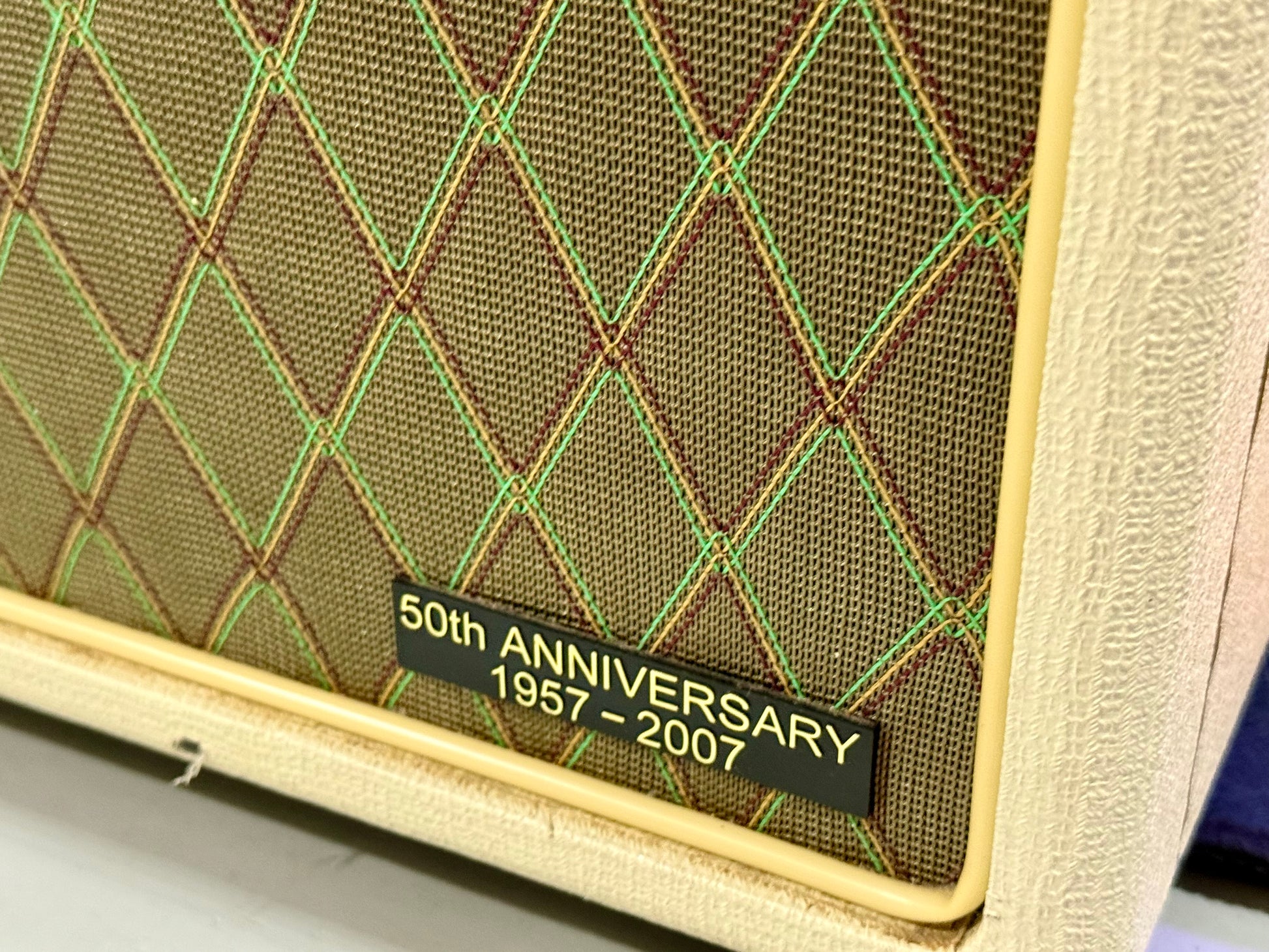

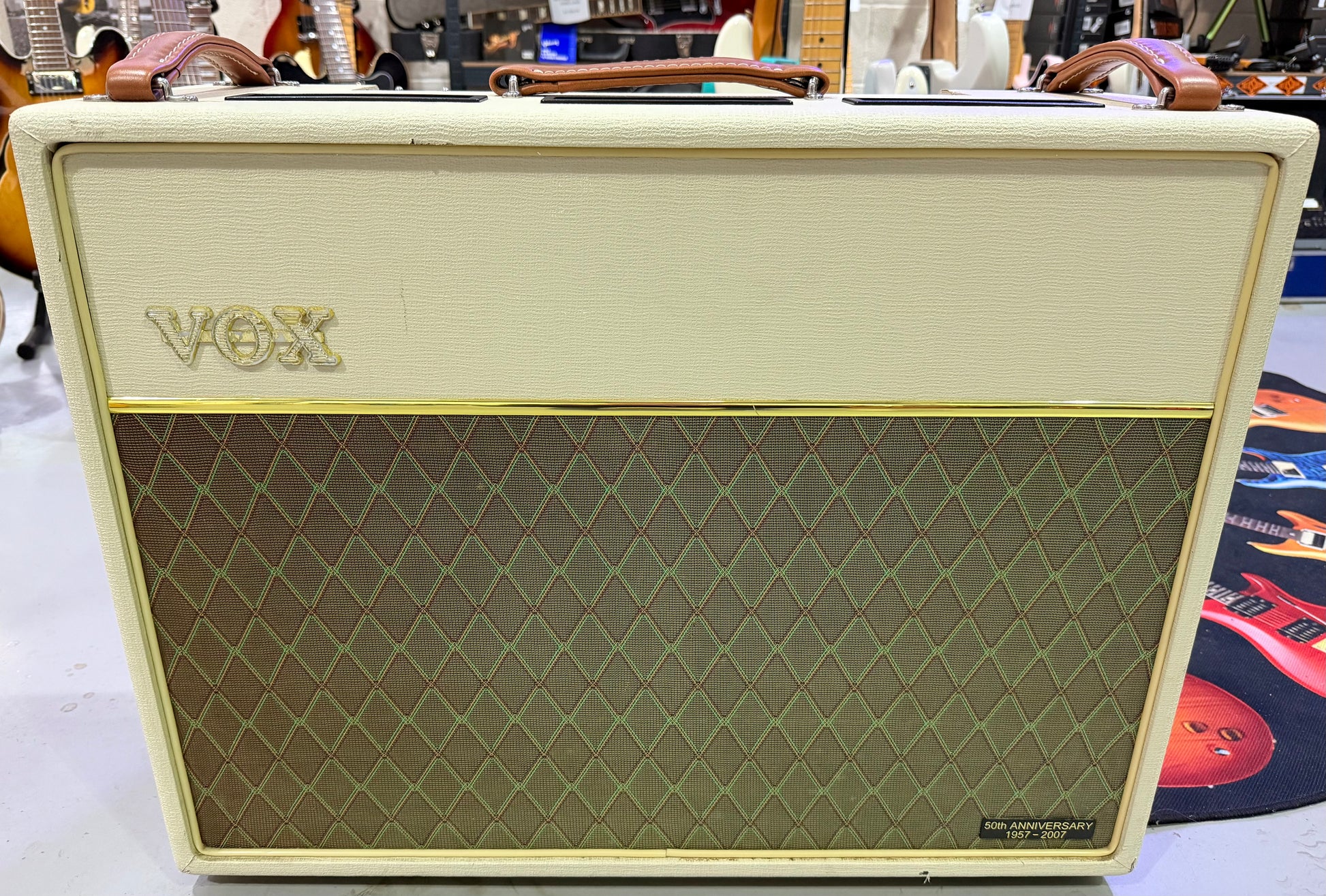

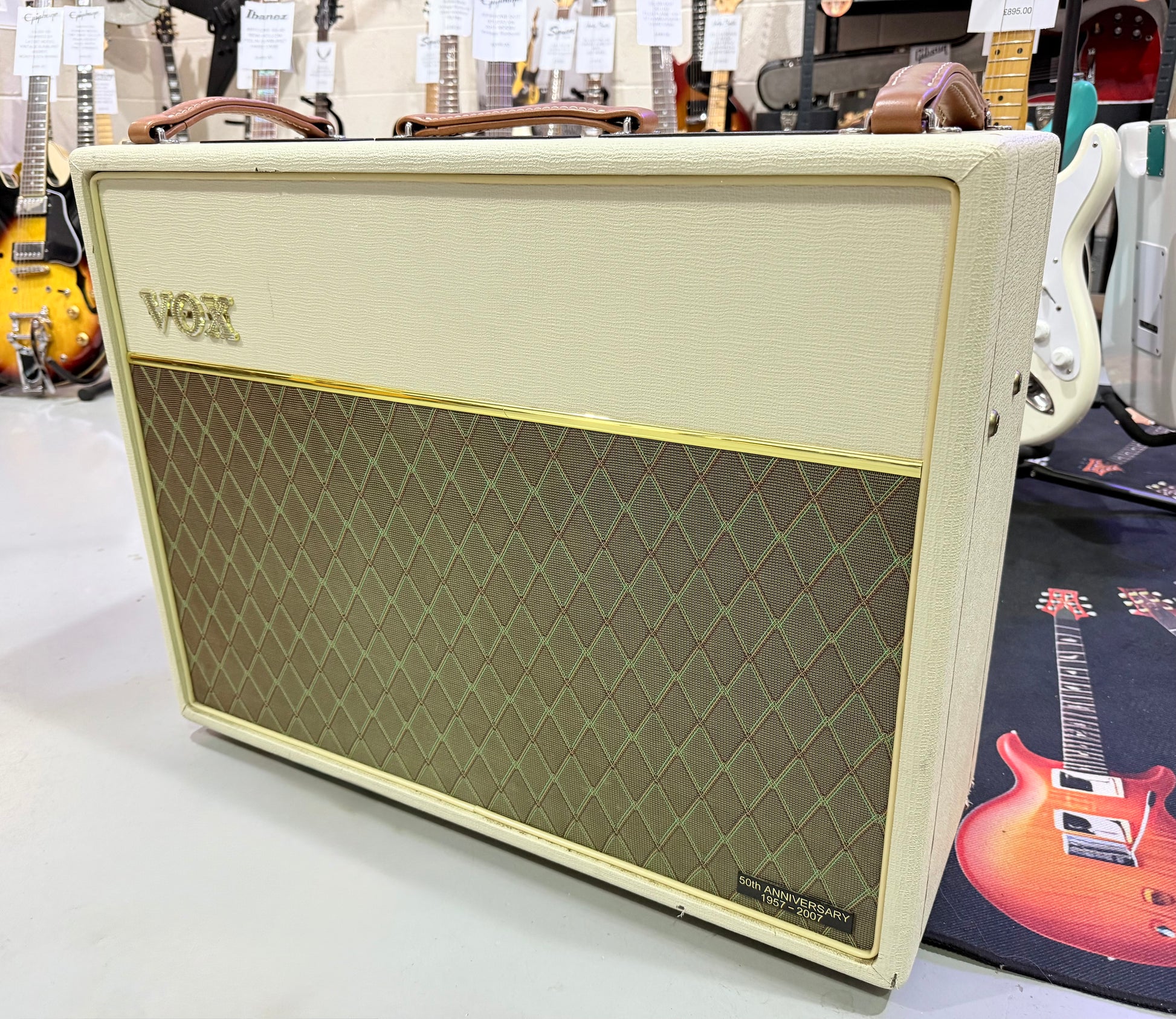

🎸VOX AC30 H2 HAND WIRED LTD EDITION 50th ANNIVERSARY WHITE CUSTOM MODEL 🎸

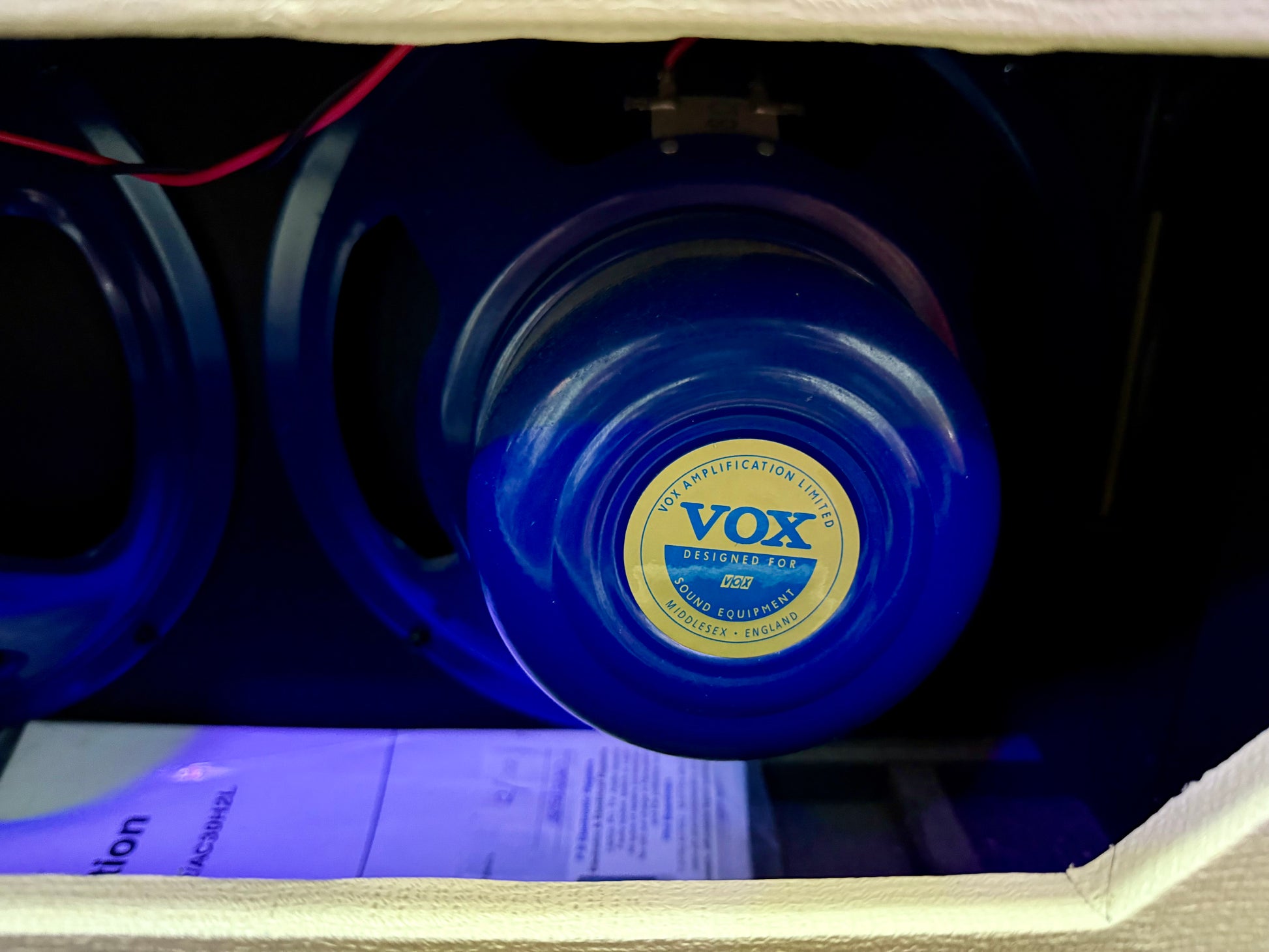

Released in 2007 for Vox’s 50th year! This heritage collection hand wired model features 2x12” Alnico Blue Speakers. Read below for a full description from Vox, however if you’re reading this I’m sure you know what you’re looking at!

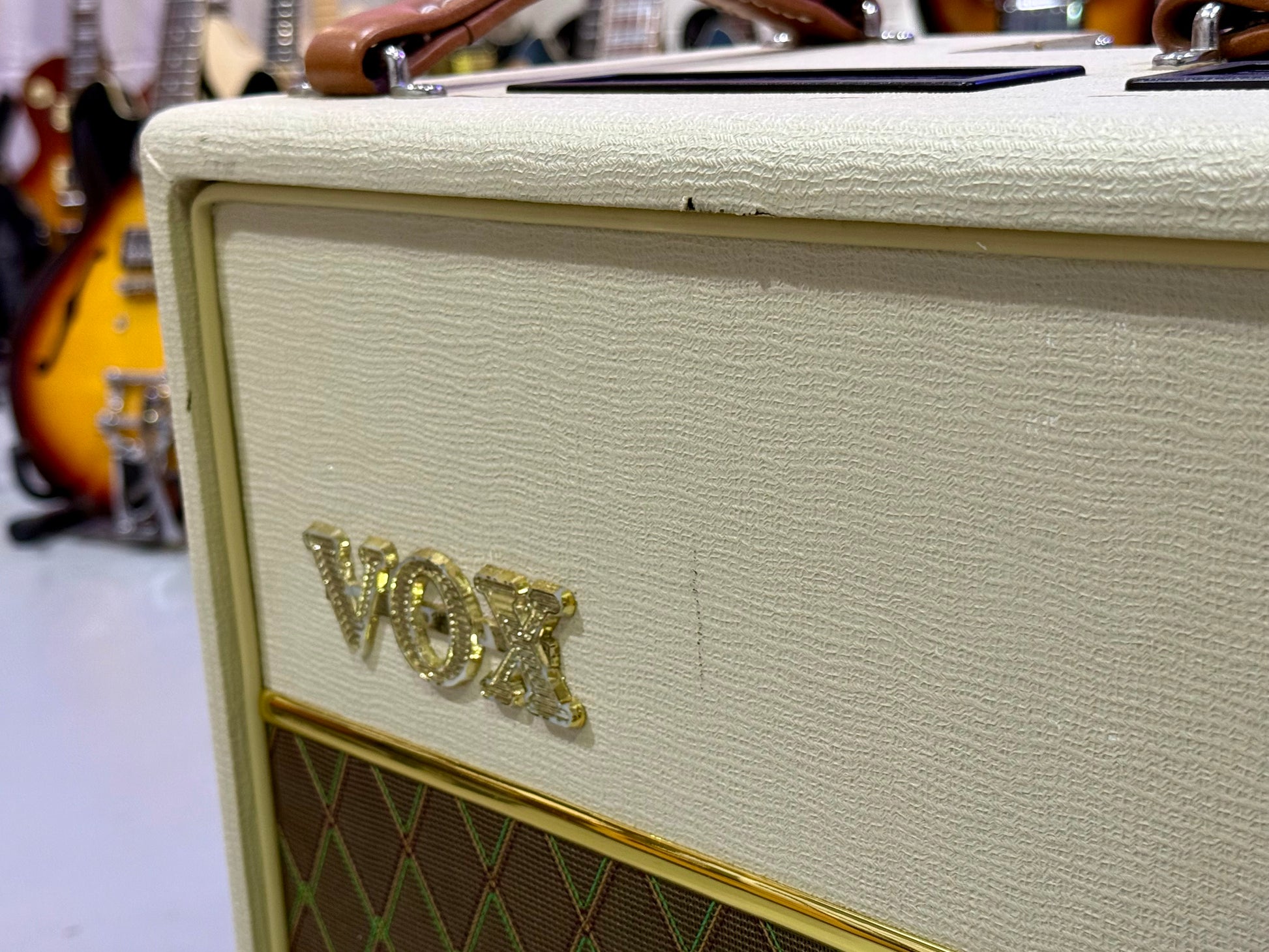

Condition wise, I’d describe this as used but cherished. There’s just a few small tears in the expected places of the covering and signs of wear/marks but nothing that takes away from the beauty of this amp.

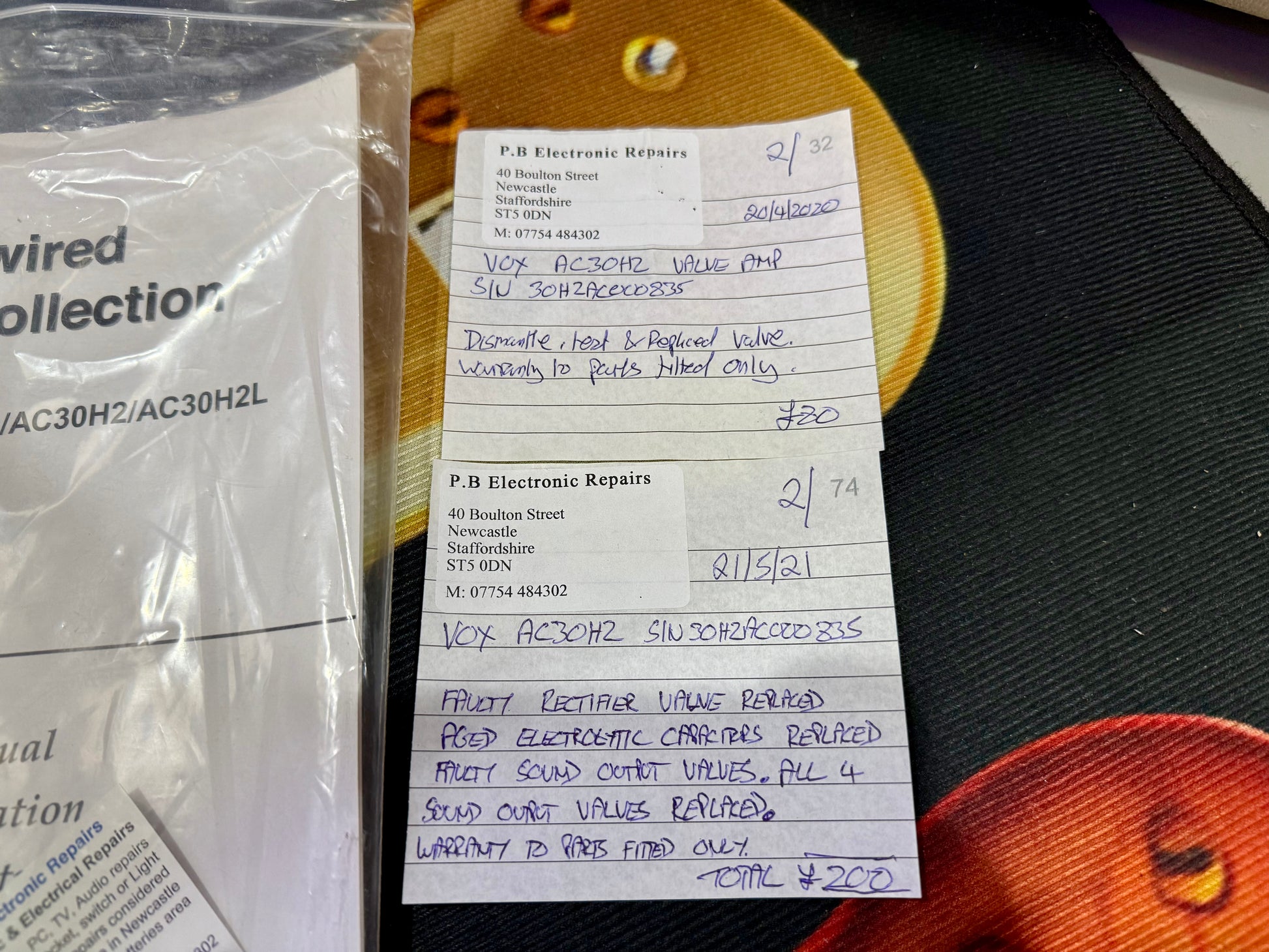

The amp has had two services/repairs completed recently. Please see the last image for details. It’s clearly been very well looked after and the pride & joy of its previous owner.
See more photos and our full range of guitars on our website (see second listing image)
🎸PART EX WELCOME~ TRADE UP OR DOWN~ LOCAL COLLECTION/TRIAL AND LOCAL DELIVERY OPTIONS🎸
To commemorate the 50th Anniversary of VOX guitar amplifiers in 2007, Vox first introduced the AC15H1TV, and later the same year, the AC30H2. Both amps used the EF86 preamp tube, the same valve used in Vox amps manufactured in the late 50s and early 60s. This tube had nearly become extinct until Electro Harmonix reissued it. This is one of the finest VOX amplifiers in the 50 year history of Vox.
EF86: The tube with the magical VOX tone
What is it that makes EF86 based VOX amplifiers sound so good? Maybe it’s the way the amp naturally overdrives. Or maybe it’s the raw power of the creamy distortion as you crank the amp all the way up. Whatever it is, there is an undeniable magic about this period of VOX amplification. The EF86 Pentode tube is at the heart of this elusive tone, and for many years, the EF86 tube was not available in production quantities. Fifty years later, the magic returns.

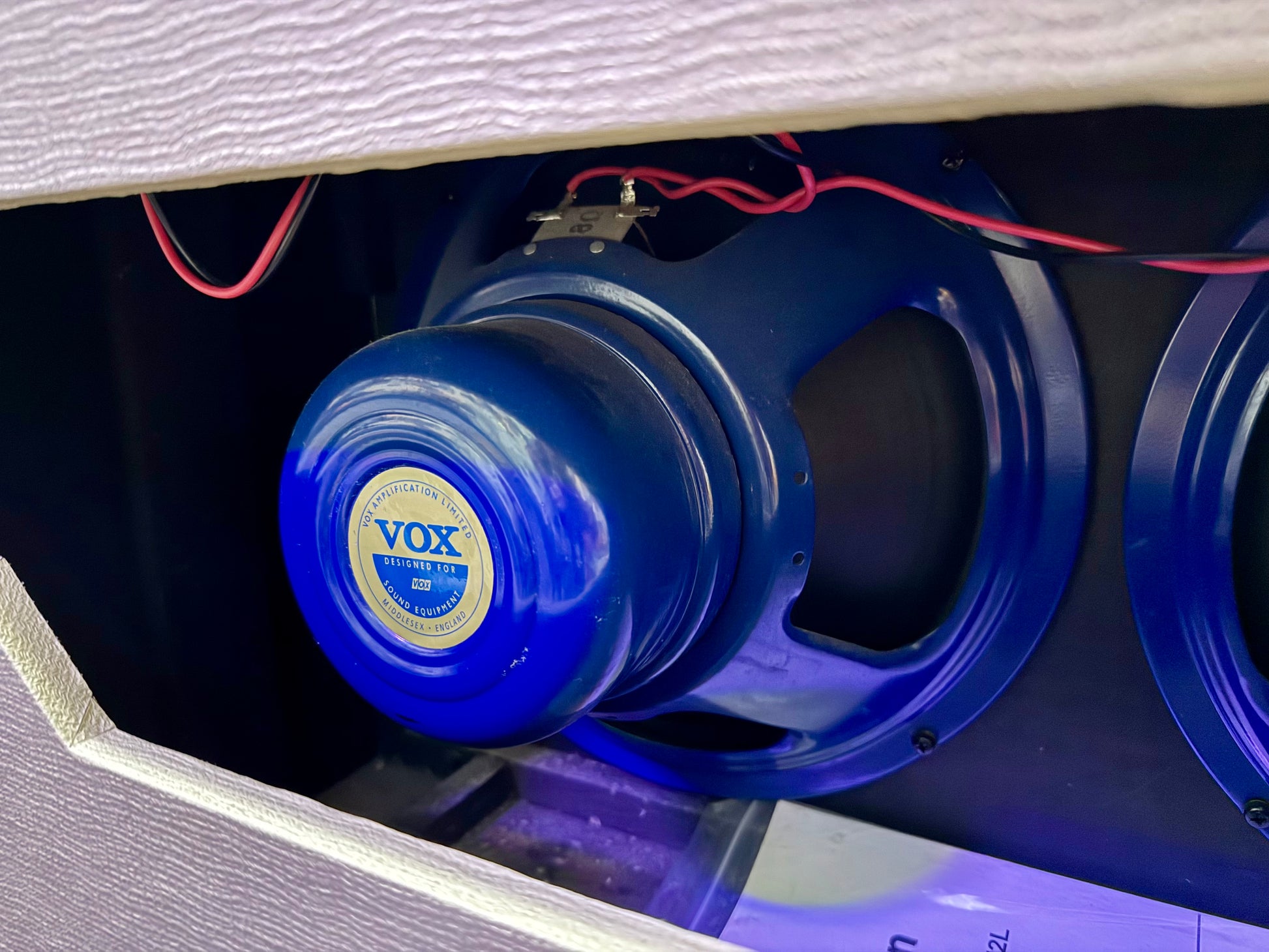

The 30-watt AC30H2 Handwired features two channels of VOX tone through a pair of 12" Celestion Alnico “Blue” speakers. The tube complement is made up of 1 x EF86, 3 x ECC83/12AX7, 4 x EL84, and 1 x GZ34 (rectifier).
Click here to read in detail about the circuitry and all the electronic features of the AC30H2

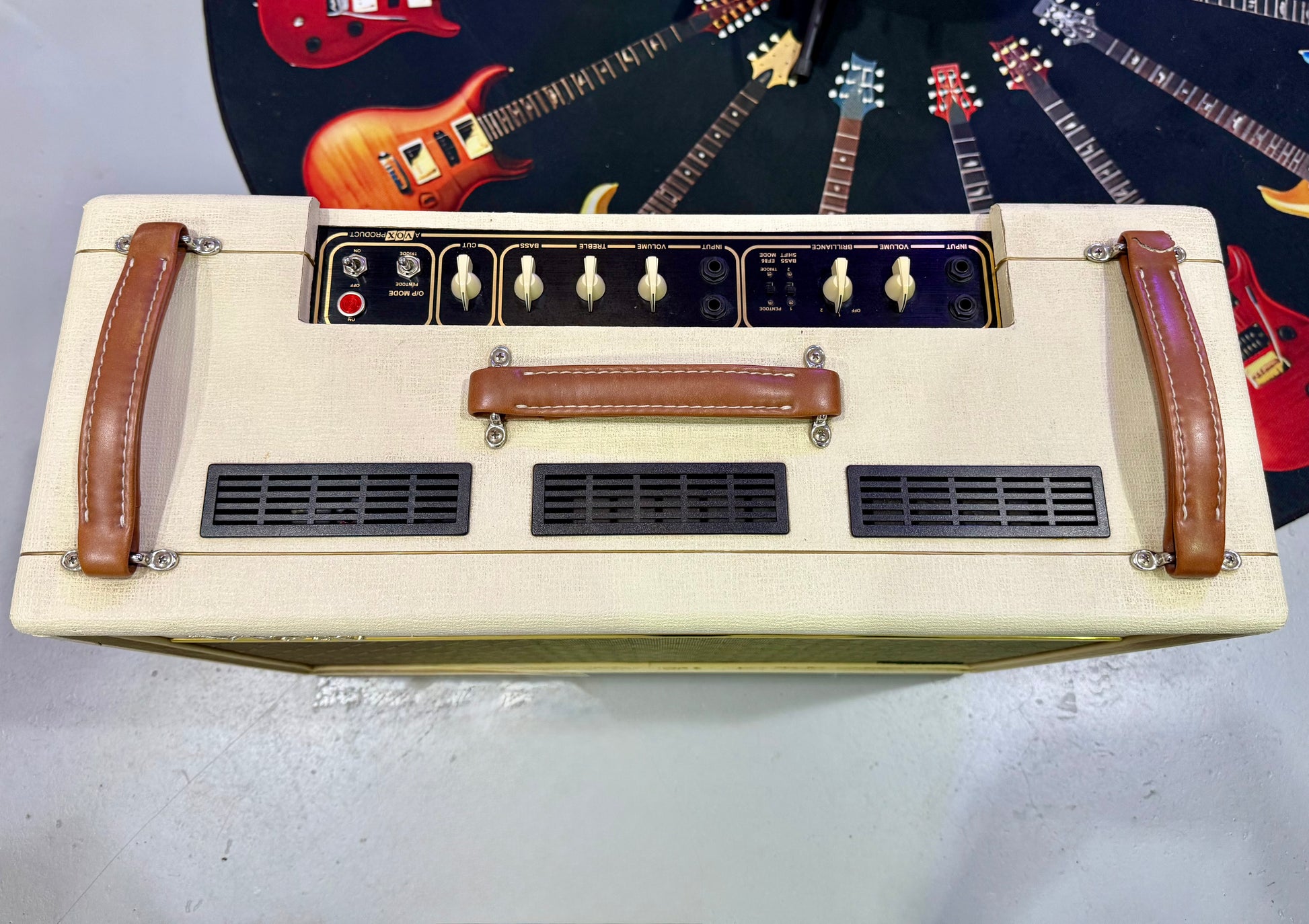

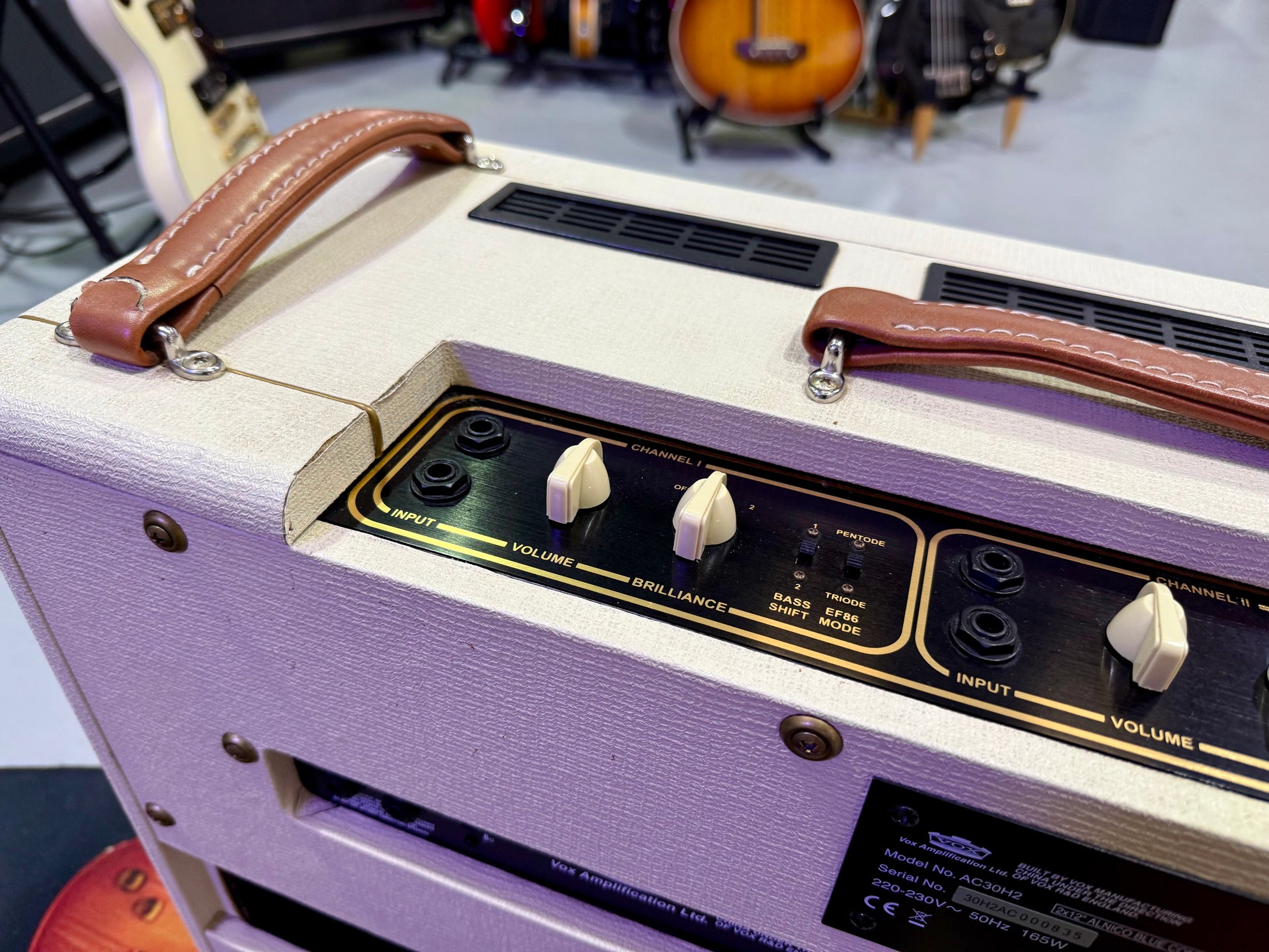

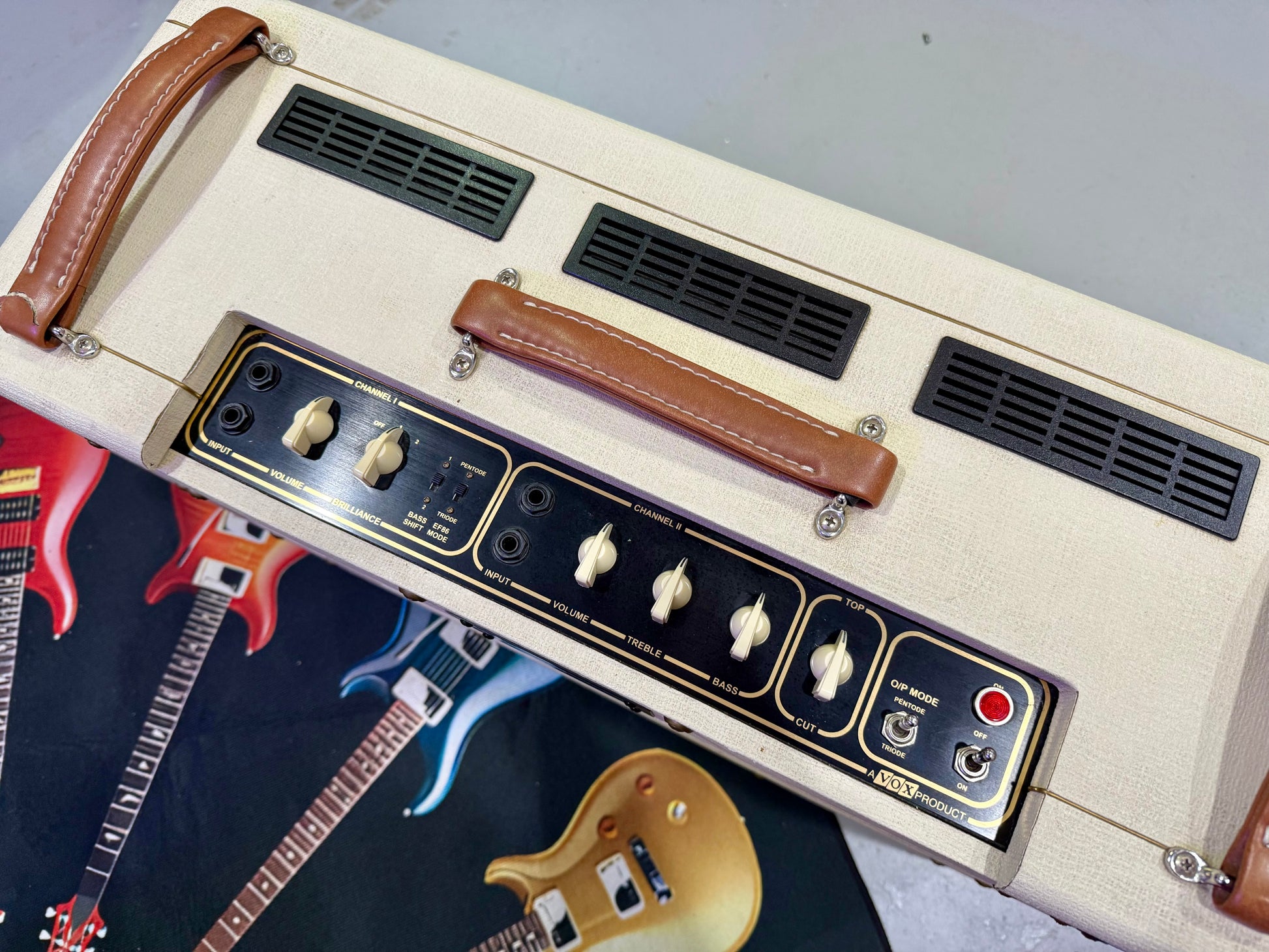

Channel 1 is the EF86 Preamp channel - It features two inputs wired in the traditional way that gives them a 6dB gain difference between them. A two-position BASS SHIFT switch is included, with position 1 voiced to the original vintage-correct bass response and position 2 voiced to tighten the bass response and reduce any muddiness during high volume use. The three-position BRILLIANCE SWITCH provides flat response when in the OFF position. Position 1 is a new position voiced like the early AC30 “Treble” amps, while position 2 is the original brilliance circuit, which acts as a dramatic bass cut. The EF86 Mode switch re-configures the EF86 valve from Pentode mode to Triode mode. Triode mode will give a lower gain tone with higher headroom. Pentode mode is the famed original mode and has a very sweet high gain tone with not very much headroom.

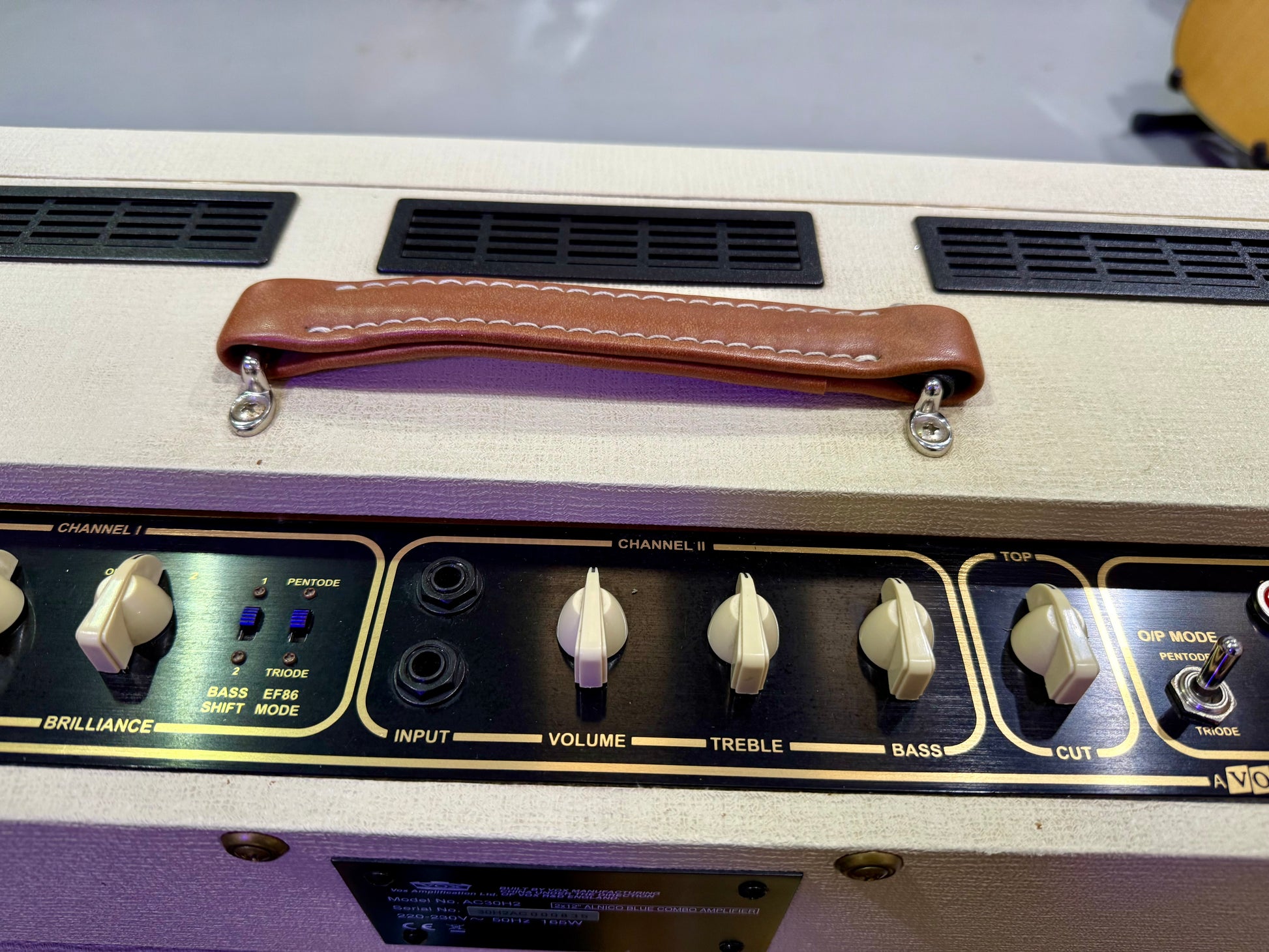

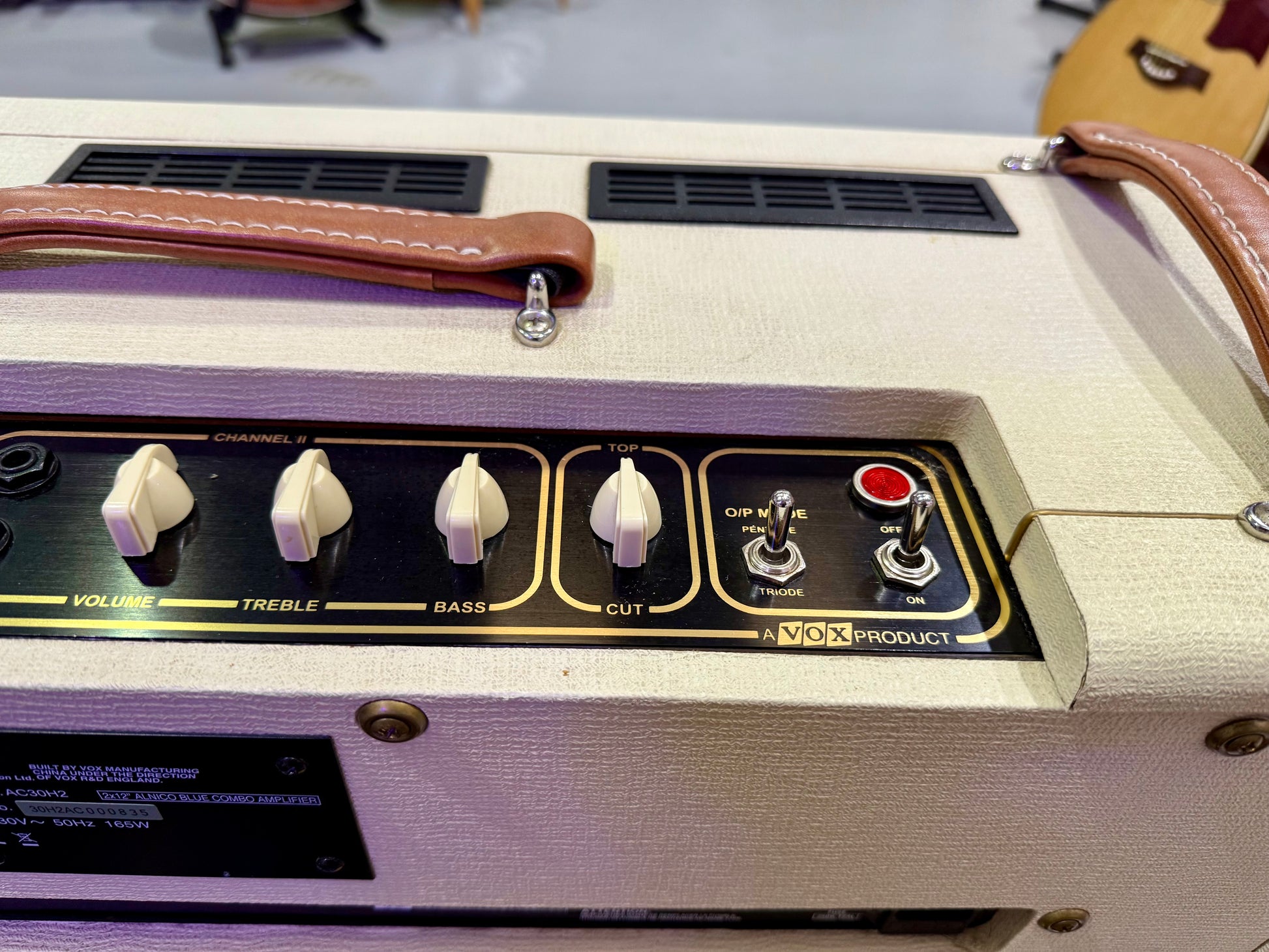

Channel 2 is the Top Boost Preamp channel - Like Channel 1, this channel includes two inputs wired with a 6 dB gain difference between them. The Treble and Bass controls are from the 1963 Top Boost circuit and are extremely interactive. Very minor adjustments of these controls can yield dramatic changes in tone color.
And true to VOX form is the Top Cut control, which cuts high from either channel end as it is turned up.
Flexible power - The O/P Switch adds even more flexibility to the AC15. This switch changes the power output valves from Pentode Mode, which is the normal operating mode of the power amplifier, to Triode Mode which halves the power output to 7.5 watts and will alter the tone to be somewhat smoother.
